| Model | US08ISIBLECCT38200F |
|---|---|
| Product group | Smart Linear Driver |
| Application area | Indoor |
| Dimming interface | BLE MESH, ZIGBEE |
| Features | 2xCH, Dimmable |
| Output power | 8W |
| Output current | 200mA |
| Output voltage | 34-38V |
| Operatiing mode | Constant Current |
| Power factor | LPF |
| Type of protection | IP20 |
| Selv | SELV60 |
| Height | 21mm |
| Lifetime | 30000h |
| Powered by | Plexilent, Tuya |

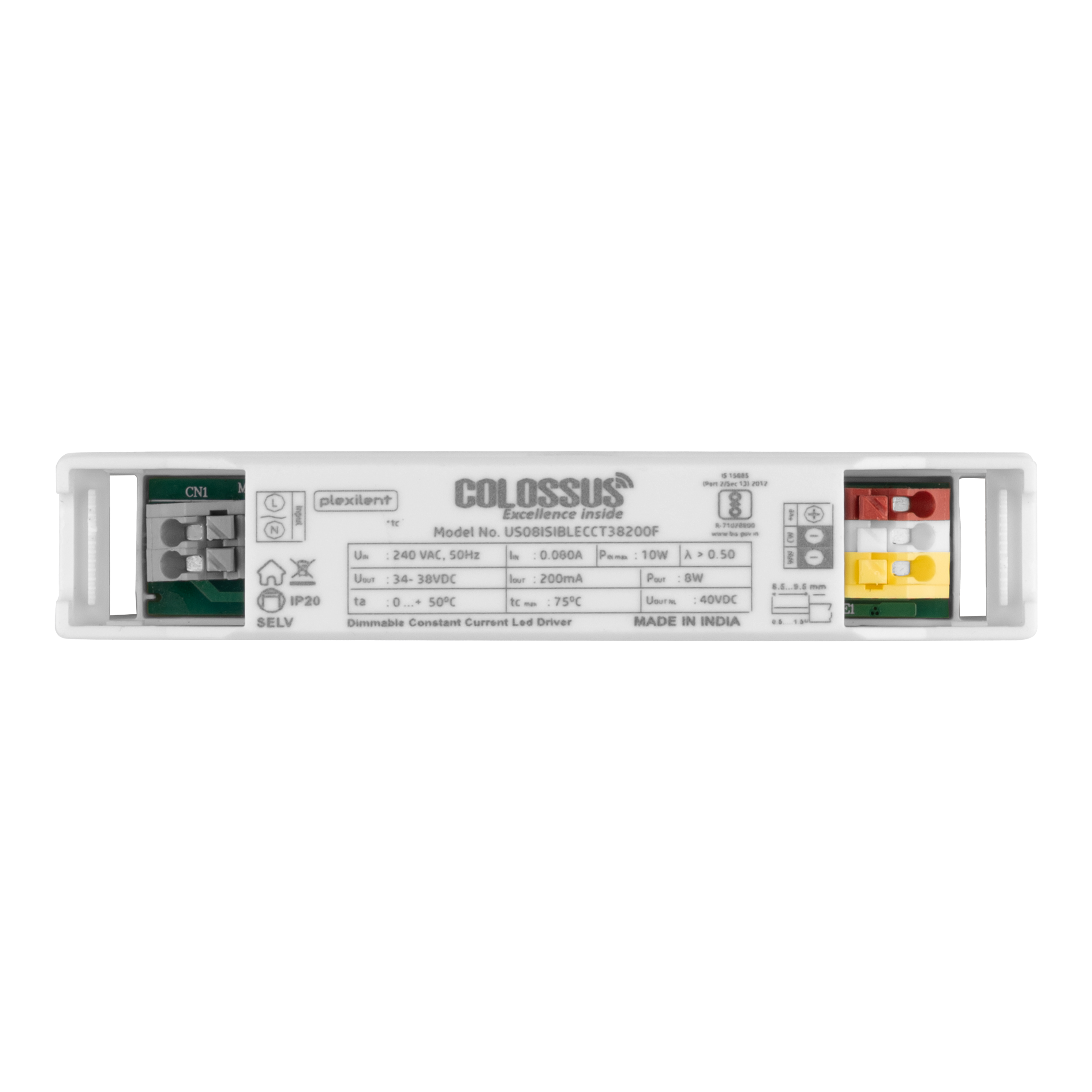

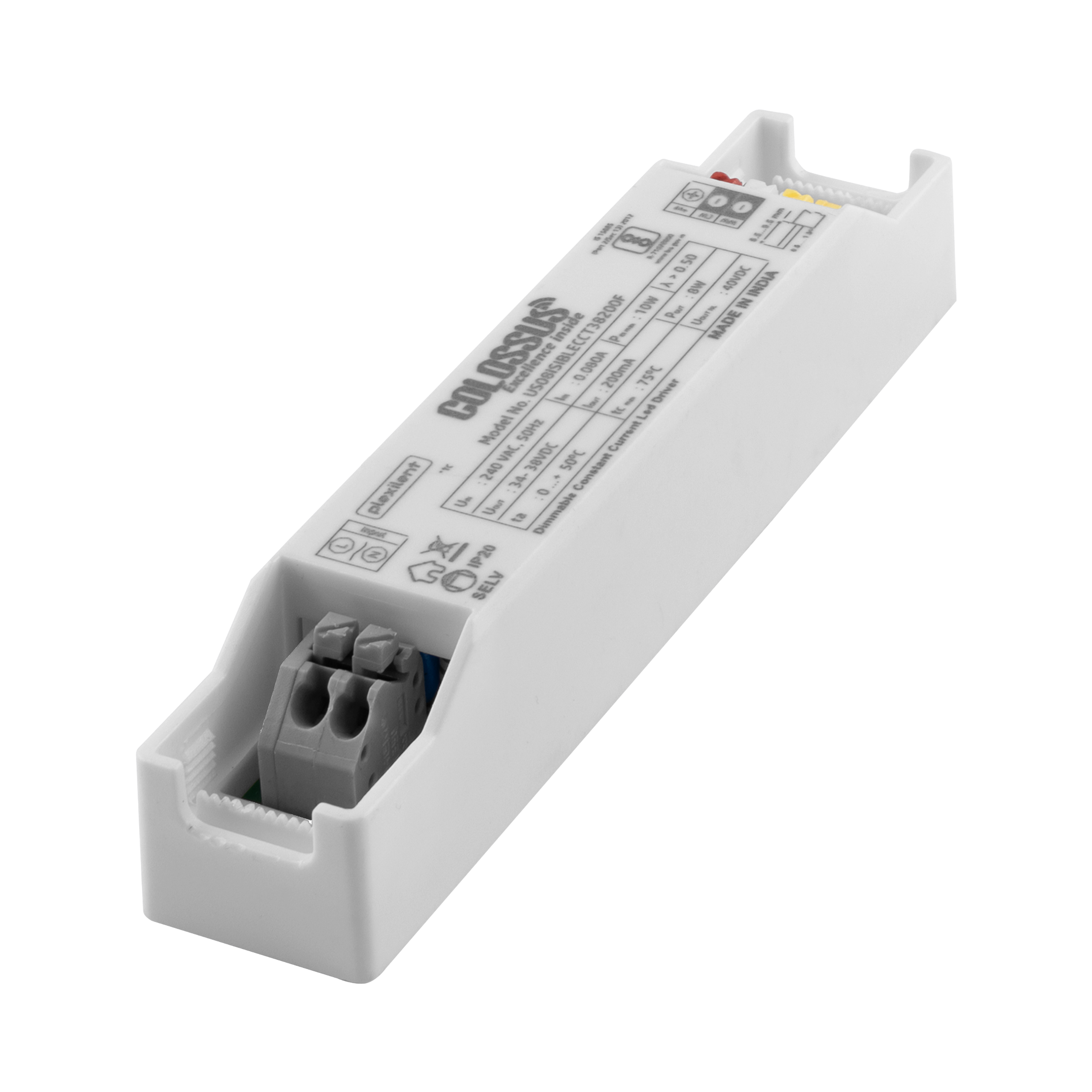

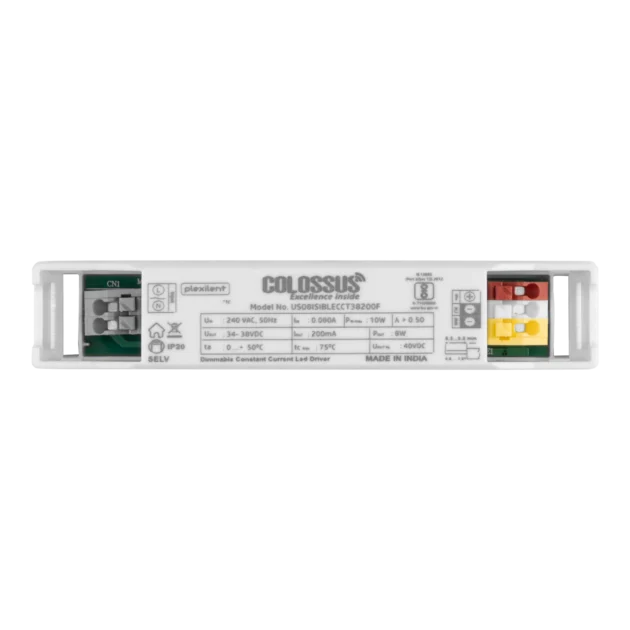

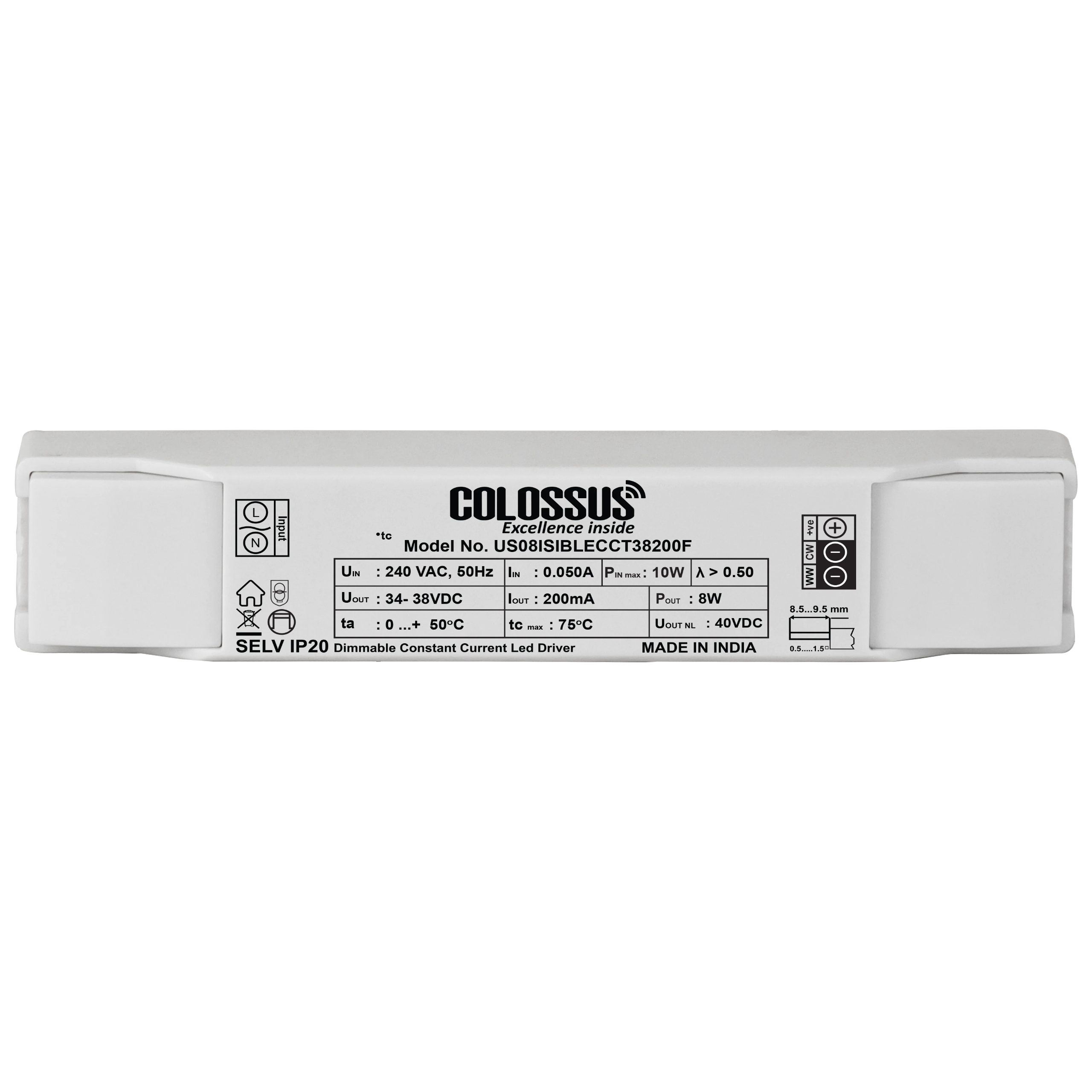

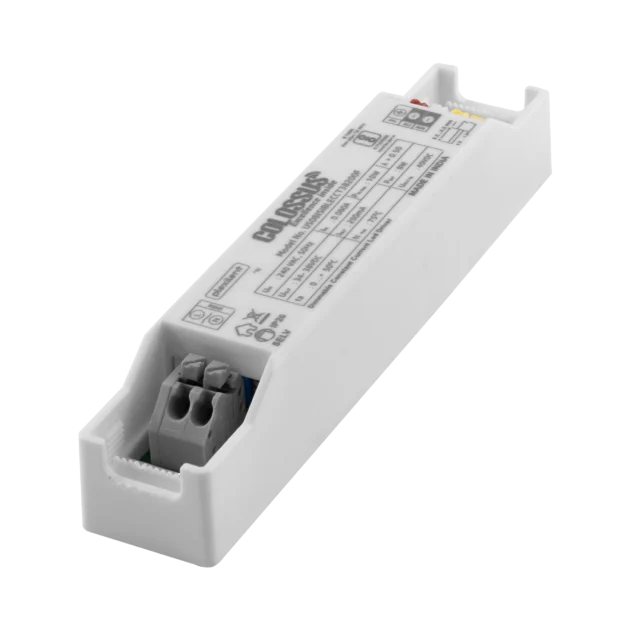

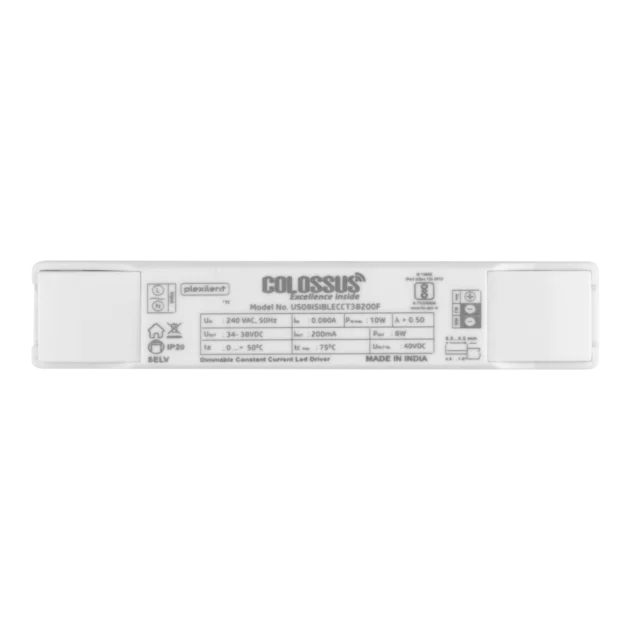

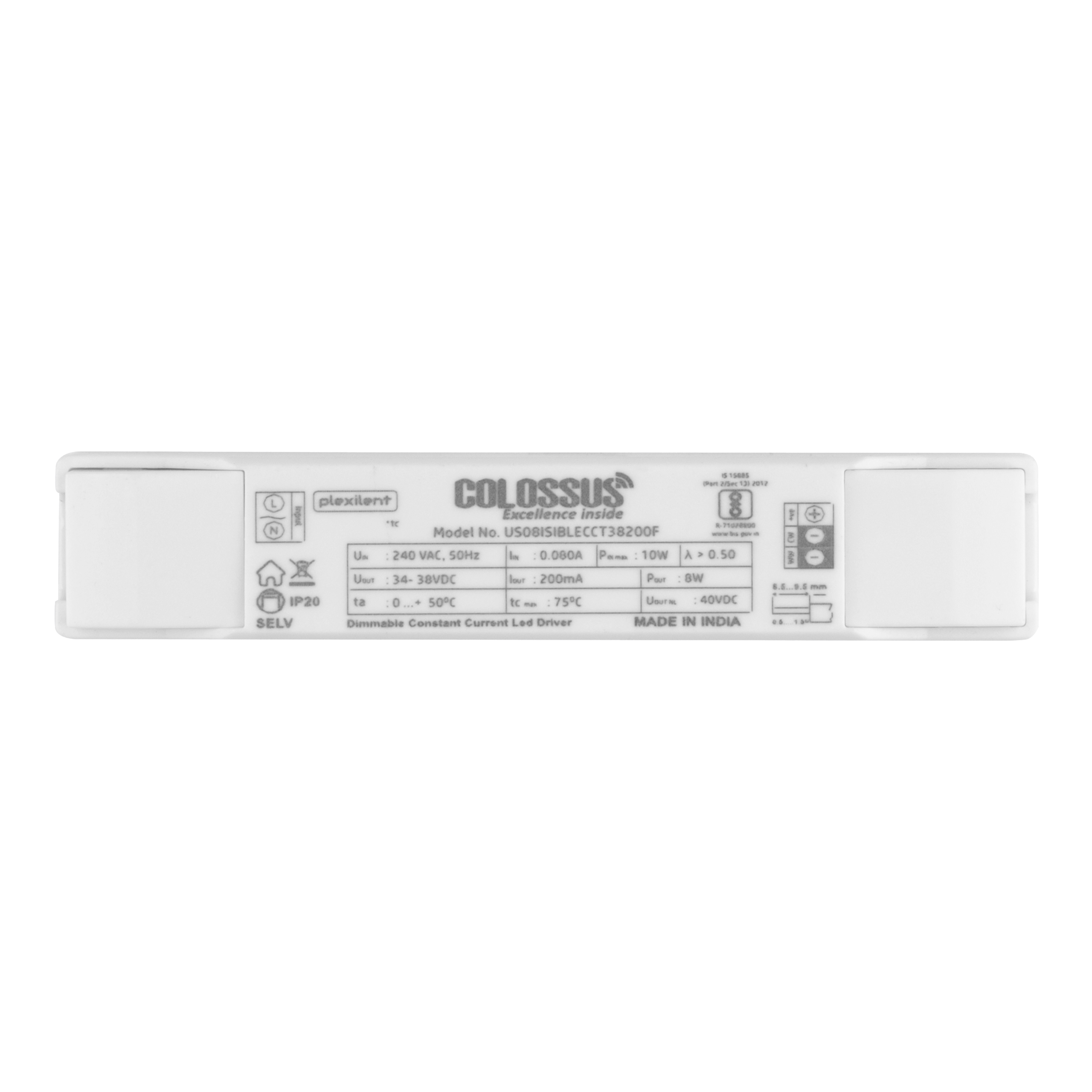

Pro Flex 8W 200mA UJX1 -Ultra Slim
In stock
Product Description |
|
| . | Smart Dimmable Constant Current Driver For Led Modules |
| . | Input voltage 240VAC |
| . | High Efficiency >80%(@100% Load) |
| . | Power Factor >0.50(@100%Load) |
| . | Protection against Abnormal Operating Conditions Like Open Voltage Protection,Overload Protection |
| . | Surge protection 2.5KV |
| . | Compatible with BLE , BLE MESH & ZIGBEE Module |
Application:
Office
Home
Shop
