| Model | ELS30IHIDT842900N |
|---|---|
| Product group | DALI Linear – NFC Driver |
| Output Ripple Current | <5% – Flicker Free |
| Application area | Indoor |
| Dimming interface | DT8 |
| Features | 2xCH, Dimmable |
| Output power | 30W |
| Output current | 200-900mA |
| Output voltage | 9-42V |
| Operatiing mode | Constant Current |
| Power factor | HPF |
| Type of protection | IP20 |
| Selv | SELV60 |
| Height | 23mm |
| Lifetime | 50000h |
| Powered by | DALI |

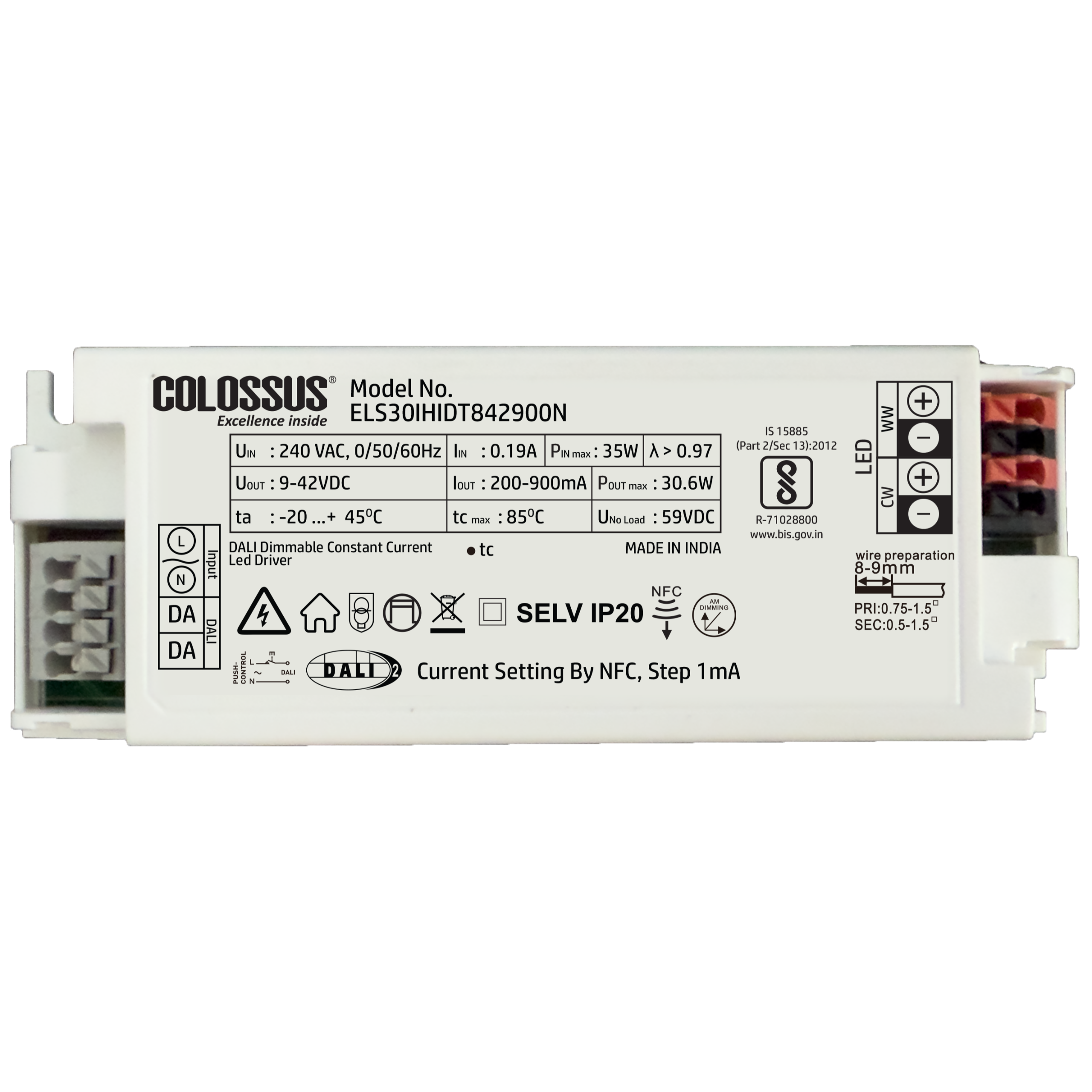

DALI-2 NFC 30W 200-900mA DT8 – Flicker Free
In stock
| Product description | |
| . | DALI-2 Dimmable Constant Current Driver For Led Modules |
| . | This driver is compatible with NFC for easy configuration. |
| . | Configurable parameters (operating mode, channel mode, fade time, dimming curve, CLO, min-max levels, scenes, groups, etc.) |
| . | Input Voltage 240VAC |
| . | Output Ripple Current <5% (@ Full Load, <120 Hz) – Flicker Free |
| . | High Efficiency >89% (@ Full Load) |
| . | Power Factor >0.97, THD<10%(@100%Load) |
| . | Compatible with DALI-2 & PUSH Dimming |
| . | Nominal Life Time: 1,00,000 hours @ tc = 45°C |
Application:
Office
Home
Shop
