| Model | ELS23IHIDT646700N |
|---|---|
| Product group | DALI Linear – NFC Driver |
| Output Ripple Current | <5% – Flicker Free |
| Application area | Indoor |
| Dimming interface | DT6 |
| Features | Dimmable |
| Output power | 23W |
| Output current | 100-700mA |
| Output voltage | 3-46V |
| Operatiing mode | Constant Current |
| Power factor | HPF |
| Type of protection | IP20 |
| Selv | SELV60 |
| Height | 21.5mm |
| Lifetime | 50000h |
| Powered by | DALI |

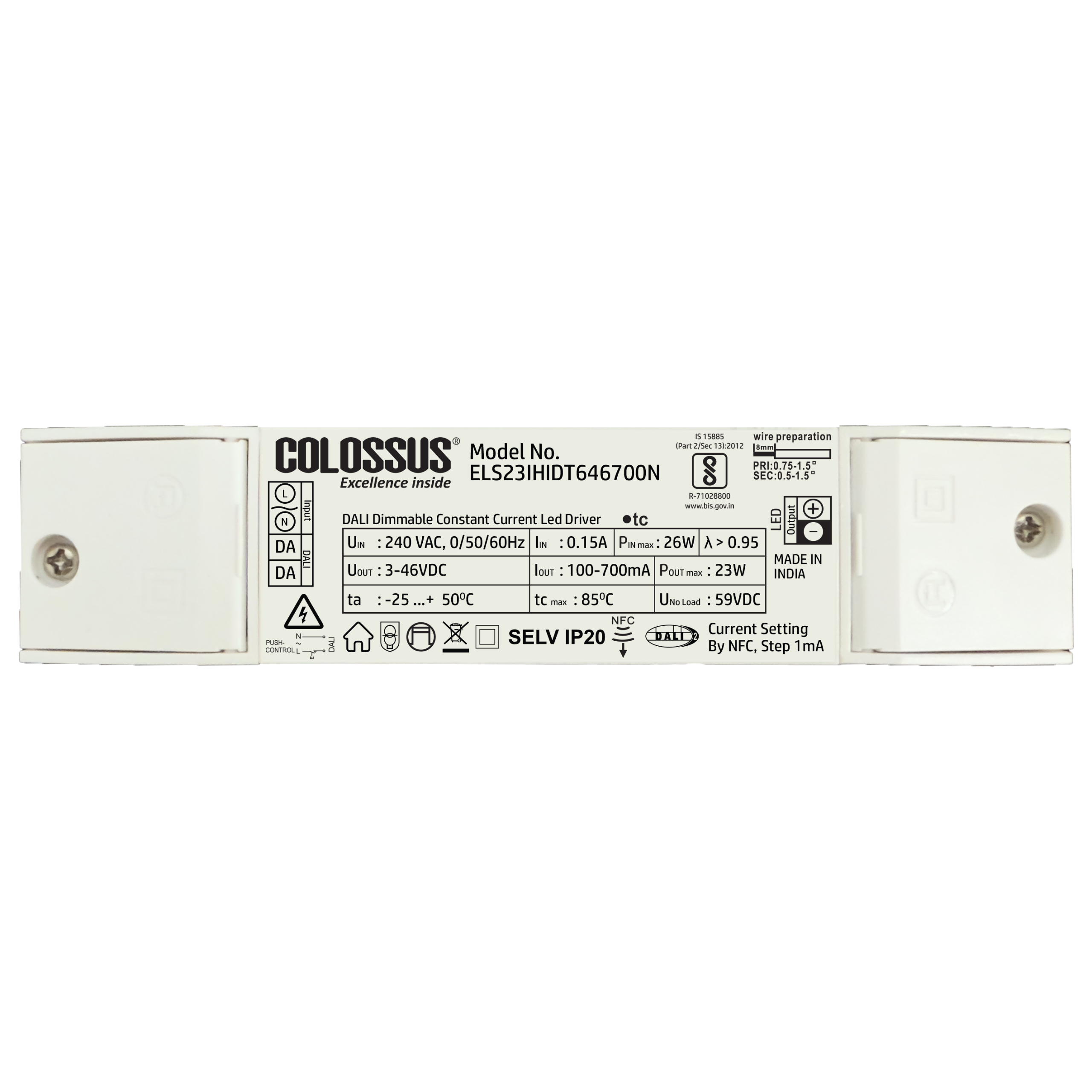

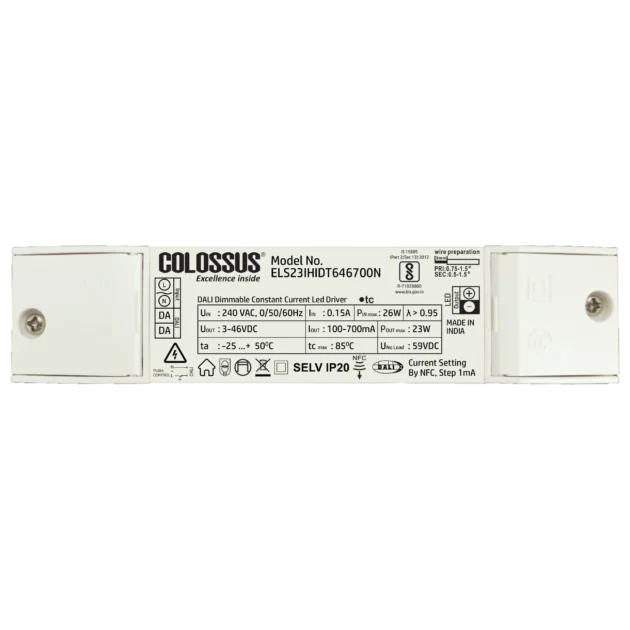

DALI-2 NFC 23W 100-700mA DT6 – Flicker Free
In stock
| Product description | |
| . | DALI-2 Dimmable Constant Current Driver For Led Modules |
| . | This driver is compatible with NFC for easy configuration. |
| . | Configurable parameters (operating mode, channel mode, fade time, dimming curve, CLO, min-max levels, scenes, groups, etc.) |
| . | Input Voltage 240VAC |
| . | Output Ripple Current <5% (@ Full Load, <120 Hz) – Flicker Free |
| . | High Efficiency >86% (46VDC@500mA) |
| . | Power Factor >0.95, THD<15%(@100%Load) |
| . | Compatible with DALI-2 & PUSH Dimming |
| . | Nominal Life Time: 1,00,000 hours @ tc = 45°C |
Application:
Office
Home
Shop
