| Model | US200IHIDT8248330F |
|---|---|
| Product group | DALI SMPS |
| Output Ripple Current | <5% – Flicker Free |
| Application area | Indoor |
| Dimming interface | DT8 |
| Features | 2xCH, Dimmable |
| Output power | 200W |
| Output current | 8.33A |
| Output voltage | 24V |
| Operatiing mode | Constant Voltage |
| Power factor | HPF |
| Type of protection | IP20 |
| Selv | SELV60 |
| Height | 31mm |
| Lifetime | 50000h |
| Powered by | DALI |

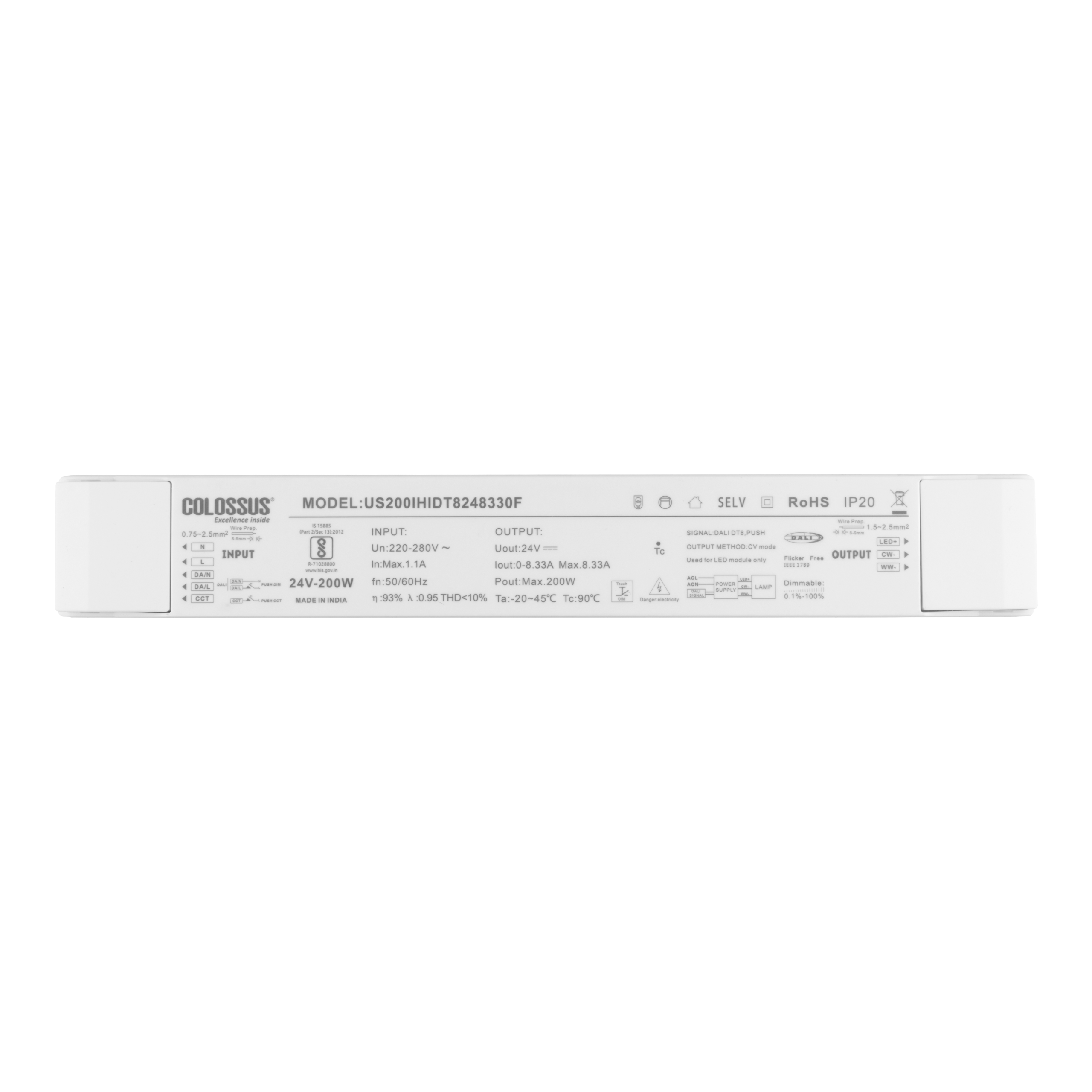

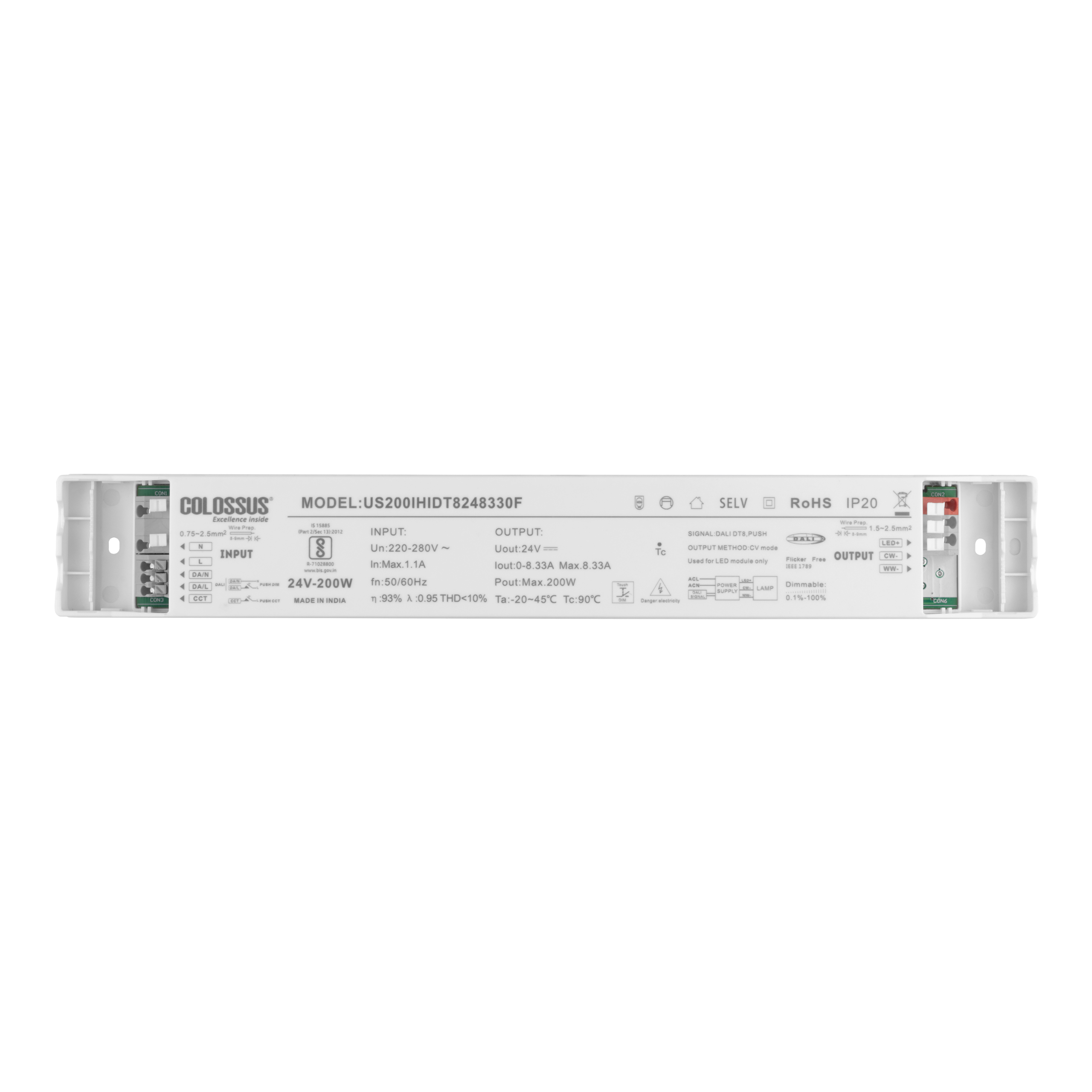

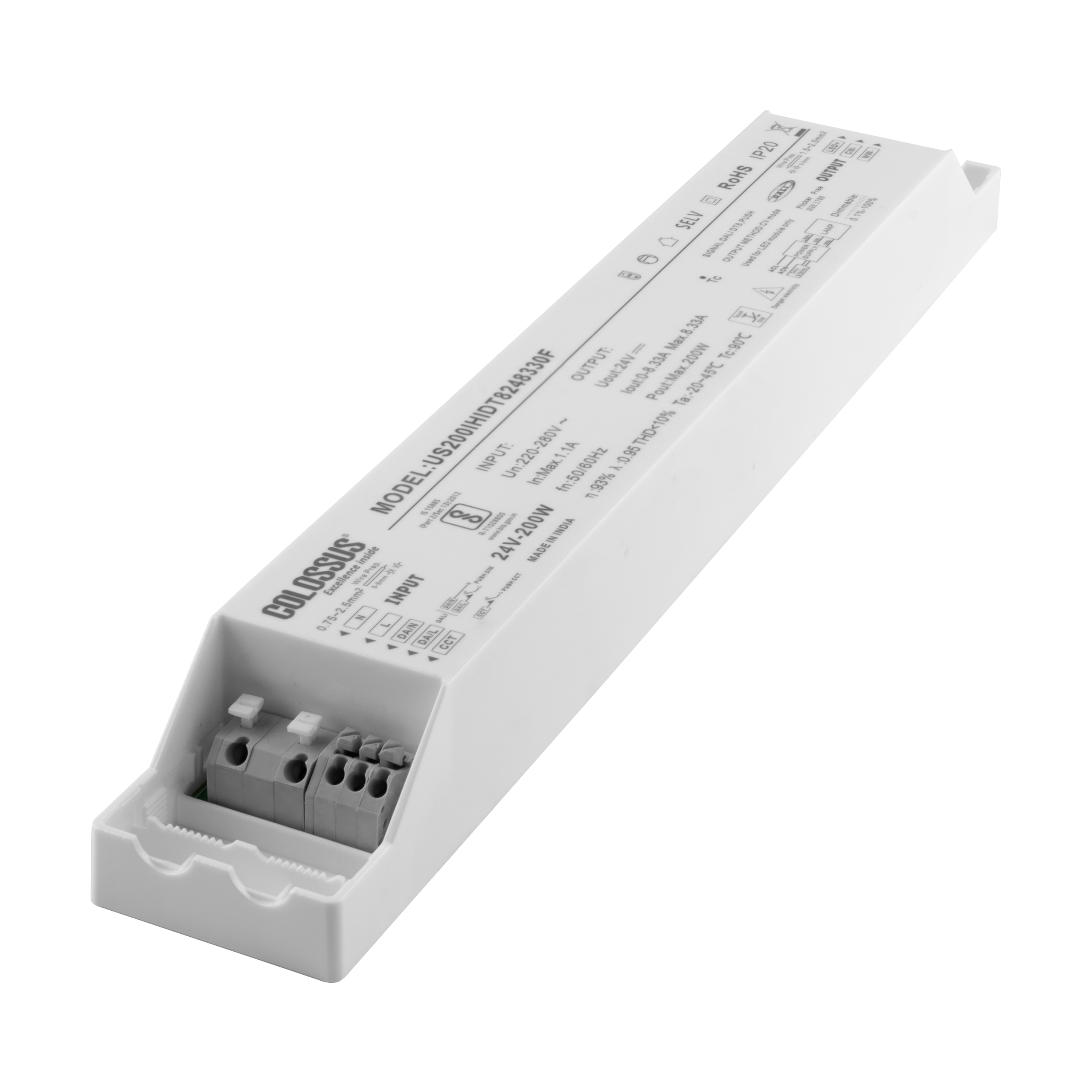

DALI-2 200W 24V 8.33A DT8 – Flicker Free
In stock
| Product description | |
| . | DALI-2 Dimmable Constant Voltage Driver For Led Modules |
| . | Output Ripple Current <5% (@ Full Load, <120 Hz) – Flicker Free |
| . | Input Voltage 240VAC |
| . | High Efficiency >91% (@Full Load) |
| . | Power Factor >0.97 THD<10%(@100%Load) |
| . | Compatible with DALI-2 & PUSH Dimming |
| . | Nominal Life Time: 1,00,000 hours @ tc = 45°C |
Application:
Office
Home
Shop
